Kjølevifte, 14", sug/blås kombi, Craig Davis
| SPECIFICATIONS | COMPONENTS | |||
| Airflow | 1021 CFM (ft3/min) | #10205 | Motor (12 Volt) | |
| Maximum current | 11.0A (12 Volt) 5.5A (24 Volt) | #10318 | Rotor (reversible, glass-filled nylon) | |
| Weight | 1.5 kg (3.3 lb) | #10371 | Shroud (glass-filled polypropylene) | |

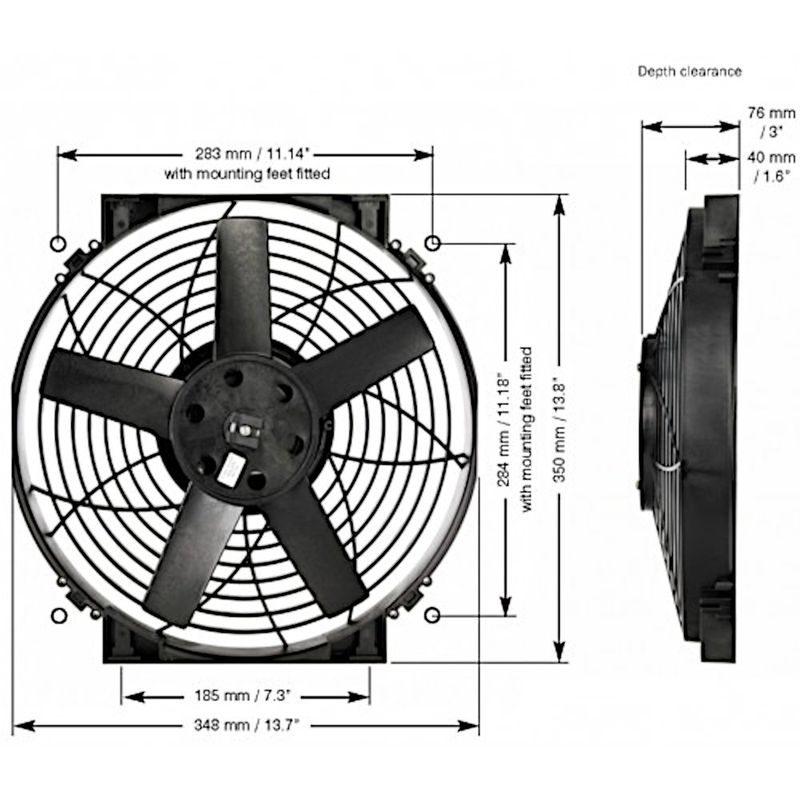

| Dimensions | Height = 350mm Width= 348mm Depth = 76mm | #0604 | Mounting feet | |
These fan assemblies are set up for upstream applications. For downstream applications the fan blade must be removed and turned over and the polarity reversed. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.
"el vifte" "el vifter" kjølevifter vifter vifte
Produsent
Craig Davies
